Re: DIY antenna designs for attic?

Post by djb » Wed Nov 25, 2020 6:53 am

I built the stealth-hawk antenna, which resides in a tree in my backyard.

Able to pull in all locals and LP-TV stations. Does well on VHF as well.

https://blog.solidsignal.com/tutorials/ ... -antennas/



km1125
Posts: 1576
Joined: Thu Mar 14, 2019 3:09 pm

Re: DIY antenna designs for attic?

Post by km1125 » Mon Dec 07, 2020 8:42 pm

Today I took advantage of the WMYD change to make some other antenna changes too.

First, I changed the antenna I use to get RF14 (Lansing 6.1 and 53.1). I was using a home-built Hoverman but since it was just one RF channel that I was looking for, I decided to build a channel-specific antenna. I had an old cheap UHF antenna and I ripped it apart and reconfigured as a Yagi tuned for RF14. Took a couple attempts, as I was using some #6 power cable for the elements and it was jacketed. I was planning on just unbending the folded dipoles that were on it but they kept cracking as I tried.

Here is the original:

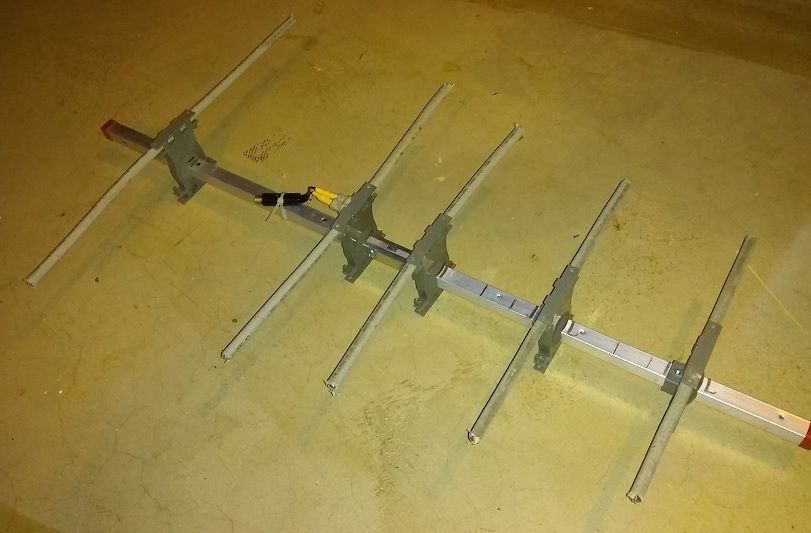

And here is the modified version:

I also added some attenuators to the VHF and UHF antennas that I had pointed to the Detroit stations to see if I could knock down RF23 WUDT as it was creating co-channel interference in my attempts to get RF23 WNWO from Toledo. Took a few tries, but finally got it. Ended up losing RF9 CBET in the process but we rarely watch that. Seems like even my VHF antenna was pulling in enough of RF23 WUDT even though it was also filtered through a VHF/UHF diplexer. Now I'm picking up WNWO pretty good. We'll see if I it's still good when I have a few inches of snow on the roof.



User avatar
WOHO
Posts: 461
Joined: Thu Dec 16, 2004 12:05 am
Location: Cumulus has killed 1470 KHz

Re: DIY antenna designs for attic?

Post by WOHO » Wed Dec 09, 2020 3:16 pm

km1125, what's your QTH? Nice homemade Yagi- did you use a specific program for he driven rod and reflectors' measurements?



km1125
Posts: 1576
Joined: Thu Mar 14, 2019 3:09 pm

Re: DIY antenna designs for attic?

Post by km1125 » Wed Dec 09, 2020 5:00 pm

Western Wayne county. I used one of the online calculators for the length of the elements and spacing but I was getting resonance at a much higher frequency than planned, so I had to scale all the dimensions up a bit to get to the frequency I wanted - 473MHz.



CK-722
Posts: 1284
Joined: Sun Dec 16, 2018 3:53 pm

Re: DIY antenna designs for attic?

Post by CK-722 » Wed Dec 09, 2020 11:29 pm

Rule #1 for antenna building. Measure thrice and cut once. If in doubt, cut longer than you expect. The metal boom affects the effective length. Some designers say to use a wooden or PVC boom. Where did you get the tubing? It looks like 3/8" diameter??? That's neat how you have the measurements marked on the boom. Can you move the elements in the design process before fastening them down? Where did you get the mounting fasteners? Tubing and other components? What are the fasteners made of? If at least part metal, are the elements insulated from the boom?
